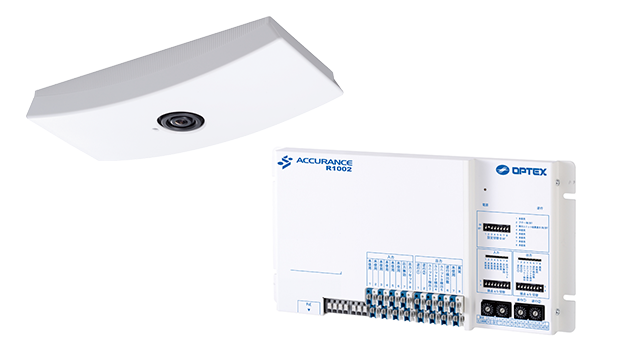

Accurance OV-102
OV-102S(E)[Camera] OV-102CB(E)[Control box] Video-based, human tracking system, a tailgating detection sensor, and the capacity to determine direction.
Enquire
Product Details
Key Features
Specifications
Downloads
The Accuracy OV-102 is a multipurpose anti-tailgating system that has the capacity to determine direction and track human activity. Depending on the circumstances and the security levels that clients choose, the sensor offers three different levels of action in the event of tailgating: "alert/deterrence," "deterrence/simplified prevention," and "prevention." The Escort Function, which permits admittance of a visitor without the authorized credentials required to access the guarded area, and the external output of photos acquired by a detecting unit are two of the system's many sophisticated features.A control box (OV-102CB(E)) and a detecting unit (OV-102S(E)) are part of the system.
The layout, door types, and lighting configurations of installation environments differ. With the OV-102 Series' extremely adjustable area settings and "door cancel" capability, users can create a security system without any limitations.
- Door cancel function
Ignore door movement on installation side of detection unit. - Workability
Install on existing door - Detection area adjustability
Detection area can be adjusted after installation of detection unit. - Sensitivity adjustability
Sensitivity can be adjusted after installation.
- Optex accurance ov 102 datasheet en.

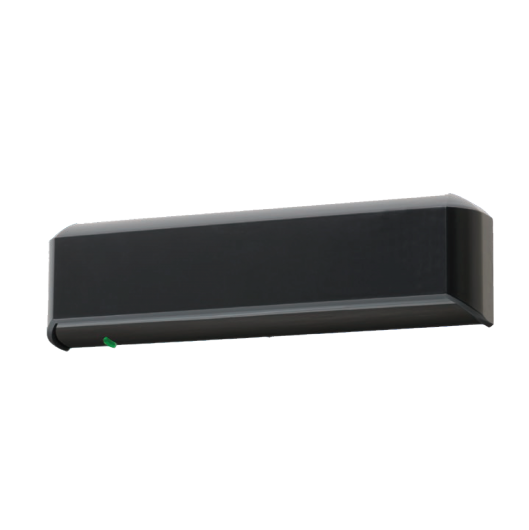

AIR-SLIDE 2
ACTIVE INFRARED SENSOR
- BLUE ZONE Technology
- Touchless Switch with FLEX EYE
- BLUE ZONE Technology – When the approach area detects a person or object, the sensor will activate the door and turn on the “BLUE ZONE” which detects through the threshold. As long as someone is in the detection area, the sensor will keep the door in the open position. Once the area is cleared, the “BLUE ZONE” will ignore the door panels and allow the door to safely close.
- Touchless Switch with FLEX EYE – This sensor is designed to detect a hand approaching a touchless plate as a knowing activation device. FLEX EYE means a detection area for hand detection. When FLEXEYE mode is enabled, both FLEXEYE and 2nd to 4th row of detection area will detect passers.
- Building
- BLUE ZONE Technology
- Touchless Switch with FLEX EYE
- Installation tool for area adjustment
BXS-AM (W)
SELECTABLE BEAM FREQUENCY SHORT RANGE PHOTOELECTRIC DETECTOR
- Detection range 30m/60m
- Selectable 4 channel beam frequencies
- D.Q. circuit
- IP65
- IR digital anti-masking function
- 4 PIR technology
- Detection Range 24m, 12 m on each side (Left and Right)
- Adjustable each side to 5 ranges (2.5m, 3.5m, 6.0m, 8.5m, 12.0m)
- Individual detection area and sensitivity setting
- Extreme high detection mode
- SMDA logic for advanced temperature compensation
- Individual signal outputs (right / left)
- Double conductive shielding against bright light disturbance
- Back tamper
- Automatic walk test mode
- Building
- Perimeter
- Approach
- House
- Detection Range 24m, 12 m on each side (Left and Right)
- Adjustable to 5 ranges (2.5m, 3.5m, 6.0m, 8.5m, 12.0m)
- IR digital anti-masking function
- 4 PIR technology
- IP55
- White / Silver / Black
for
• BXS-ST/AM
• BXS-R/RAM
- White / Silver / Black
for
• BXS-ST/AM
• BXS-R/RAM
- Battery holder
for
• WXI-R/RAM
• VXI-RAM/RDAM
• BXS-R/RAMs
- Pole mount plate
for
• WXI-ST/AM
• WXI-R/RAM
• BXS-ST/AM
• BXS-R/RAM
- White / Black
for
• BXS-ST/AM
• BXS-R/RAM

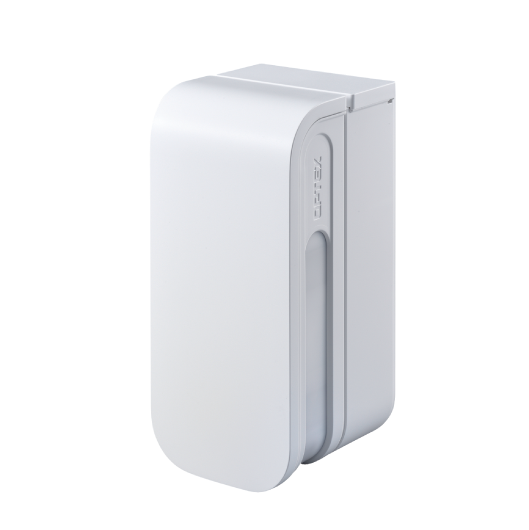

BXS-RAM (W)
BATTERY OPERATED BOUNDARY OUTDOOR DETECTOR
- IR digital anti-masking function
- 4 PIR technology
- 24m (80 ft.) 12 m (40 ft.) on each side adjustable to 5 ranges (2.5m, 3.5m, 6.0m, 8.5m, 12.0m)
- Individual detection area and sensitivity setting
- IP55
- IR digital anti-masking function
- 4 PIR technology
- Detection Range 24m, 12 m on each side (Left and Right)
- Adjustable each side to 5 ranges (2.5m, 3.5m, 6.0m, 8.5m, 12.0m)
- Individual detection area and sensitivity setting
- Extreme high detection mode
- SMDA logic for advanced temperature compensation
- Individual signal outputs (right / left)
- Double conductive shielding against bright light disturbance
- Back tamper
- Automatic walk test mode
- IP55
- Building
- Perimeter
- Approach
- House
- IR digital anti-masking function
- 4 PIR technology
- 24m (80 ft.) 12 m (40 ft.) on each side adjustable to 5 ranges (2.5m, 3.5m, 6.0m, 8.5m, 12.0m)
- Individual detection area and sensitivity setting
- IP55
- White / Silver / Black
for
• BXS-ST/AM
• BXS-R/RAM
- White / Silver / Black
for
• BXS-ST/AM
• BXS-R/RAM
- Battery holder
for
• WXI-R/RAM
• VXI-RAM/RDAM
• BXS-R/RAMs
- Pole mount plate
for
• WXI-ST/AM
• WXI-R/RAM
• BXS-ST/AM
• BXS-R/RAM
- Battery Box
for
• VXI-R/RAM/RDAM
• BXS-R/RAM
- White / Black
for
• BXS-ST/AM
• BXS-R/RAM
BXS-ST (W)
BOUNDARY OUTDOOR PIR DETECTOR
- Detection Range 24m, 12 m on each side (Left and Right)
- Adjustable to 5 ranges (2.5m, 3.5m, 6.0m, 8.5m, 12.0m)
- 4 PIR technology
- IP55
- 4 PIR technology
- 24m (80 ft.) 12 m (40 ft.) on each side adjustable to 5 ranges (2.5m, 3.5m, 6.0m, 8.5m, 12.0m)
- Individual detection area and sensitivity setting
- Extreme high detection mode
- SMDA logic for advanced temperature compensation
- Individual signal outputs (right / left)
- Double conductive shielding against bright light disturbance
- Back tamper
- Automatic walk test mode
- IP55
- Building
- Perimeter
- Approach
- House
- Detection Range 24m, 12 m on each side (Left and Right)
- Adjustable to 5 ranges (2.5m, 3.5m, 6.0m, 8.5m, 12.0m)
- 4 PIR technology
- IP55
- Selectable Plug-in End of Line Unit
for
• WXI-ST/AM
• VXS-AM/DAM
• VXI-ST/AM/DAM
• BXS-ST/AM
• WXS-AM/DAM/RAM/RDAM
• CDX-DAM/AM/NAM
• FMX-ST/DST
• FMX-DT
- White / Silver / Black
for
• BXS-ST/AM
• BXS-R/RAM
- White / Silver / Black
for
• BXS-ST/AM
• BXS-R/RAM
- Pole mount plate
for
• WXI-ST/AM
• WXI-R/RAM
• BXS-ST/AM
• BXS-R/RAM
- White / Black
for
• BXS-ST/AM
• BXS-R/RAM
Conductivity Sensor SE-Cond-D Series
Conductivity Sensor SE-Cond-D Series[Parts No. 05329]
* The PVC pipe VP-20 and a standard fitting to be prepared by the user. Replacement electrode: SE-Cond-EL[Parts No. 05335]
- Electrode replacement is quick and simple
- No tools required for the replacement of the electrode
- Electrode replacement is quick and simple
- No tools required for the replacement of the electrode
- Catalog
- Installation Manual
- Dimensions
* The PVC pipe VP-20 and a standard fitting to be prepared by the user. Replacement electrode: SE-Cond-EL[Parts No. 05335]
EP9301 EchoPoint DAS Fibre Optic Short Range
EP9301 EchoPoint DAS Fibre Optic Short Range
EP9301 EchoPoint DAS Fibre Optic Short RangePoint Location DAS Fibre Optic Sensor, short range up to 10km, underground and fence mount.- 10km detection range
- Fence mounted, buried or hybrid
- Software zoning
- +/- 6m point location
- Power Station
- Military Sites
- Airport
- Energy
- Datacentres
- Rail
- Location accuracy of ±6m
- Software zoning
- XML via TCP/IP and GIS integrations
- Maximum fiber optic sensor length of up to 100km per processor.
- EchoPoint EP9000 Series
EP9302 EchoPoint DAS Fibre Optic Short Range with Classification
EP9302 EchoPoint DAS Fibre Optic Short Range with Classification
EP9302 EchoPoint DAS Fibre Optic Short Range with ClassificationPoint Location DAS Fibre Optic Sensor, short range up to 10km, underground application with object classification.- 10km detection range
- Classification analytics
- Fence mounted, buried or hybrid
- +/- 6m point location.
- Airports
- Distribution Centers
- Refineries
- Data Conduits
- Railways
- Corrections
- 10km detection range
- Classification analytics
- Fence mounted, buried or hybrid
- +/- 6m point location.
- EchoPoint EP9000 Series
EP9311 Echo Point DAS Fibre Optic Long Range
EP9311 Echo Point DAS Fibre Optic Long RangePoint Location DAS Fibre Optic Sensor, long range up to 100km, underground and fence mount
- 100km detection range
- Fence mounted, buried or hybrid
- Software zoning
- +/- 6m point location.
- Airports
- Distribution Centers
- Refineries
- Data Conduits
- Railways
- Corrections
- 100km detection range
- Fence mounted, buried or hybrid
- Software zoning
- +/- 6m point location.
- EchoPoint EP9000 Series
EP9312 EchoPoint DAS Fibre Optic Long Range with Classification
EP9312 EchoPoint DAS Fibre Optic Long Range with Classification
EP9312 EchoPoint DAS Fibre Optic Long Range with ClassificationPoint Location DAS Fibre Optic Sensor, long range 50-100km, underground application with object classification analytics- 100km detection range
- Classification analytics
- Fence mounted, buried or hybrid
- +/- 6m point location
- Airports
- Distribution Centers
- Refineries
- Data Conduits
- Railways
- Corrections
- 100km detection range
- Classification analytics
- Fence mounted, buried or hybrid
- +/- 6m point location.
- EchoPoint EP9000 Series
FD322 Fibre optic sensor
Two-zone outdoor fiber optic PIDS on fence
- Up to 500m of sensing cable per zone
- Designed for chain link or welded mesh
- Custom tuning software with simple user interface
- Perimeter
- Highly Reliable Detection
Powered by advanced fiber optic technology from Fiber SenSys, an OPTEX Group company, the system delivers exceptional detection accuracy—meeting the stringent demands of critical infrastructure security. Intelligent algorithms effectively differentiate real intrusion attempts from environmental disturbances such as wind, wildlife, or other sources of nuisance alarms, making it an ideal solution for fence perimeter protection. - Low Total Cost of Ownership
Encased in a UV-resistant conduit, our fiber optic sensing cable is immune to corrosion, electromagnetic interference (EMI), and lightning strikes. This durability ensures long-term performance even in harsh environmental conditions, resulting in minimal maintenance requirements and a low overall cost of ownership.
- FD322 Spec Sheet
- FD322 Brochure
FD331 Fibre optic sensor
- Single-channel Fiber Defender® APU
- 5km sensing cable (available separately)
- Sensor cable immune to EMI, RFI, and lightning
- 25+ configuration parameters
- Comes with SpectraView™ Calibration Software for nuisance alarm discrimination
- Ideal for high-security applications
- Optional anemometer output
- PL1-N Nuclear approved
- Electrical substations
- Solar farms
- Aviation and train locations
- Oil and chemical facilities
- Military facilities
- Nuclear power locations
- Correctional facilities
- Corporate and commercial locations
- Dual Communication Zones
The FD33X™ Alarm Processor Unit (APU) provides zone protection for one
or two channel sensor cable deployments and enhanced intrusion detection.
A perimeter fence or wall detection zone can be complemented with other
wall / fence zones using the second channel. The FD332 offers independent
channel calibration and utilizes Digital Signal Processing (DSP) to provide
anemometer compensation for wind. The FD332, as a dual-zone system,
also ensures reduced overall system cost, power and alarm communication
requirements when compared with using two separate alarm processors. - Proven Reliability
The FD331/FD332 security system includes fiber that is immune to the effects
of EMI, lightning, magnetic fields and radio frequency transmissions. Enhanced
digital signal processing (DSP) capabilities are included to filter out sensor cable
signals from non-threat events such as wind, weather and wildlife. Made in
America, the FD33X guarantees users the system performance, reliability and
capabilities required for a dependable perimeter security system.
- FD331 Spec Sheet
- FD331 Brochure
FD342 Fibre optic sensor
- The dual-channel Fiber Defender® APU can be located remotely (up to 20km)
- 5km sensing cable (available separately)
- Sensor cable immune to EMI, RFI and lightning
- 25+ configuration parameters
- Comes with SpectraView™ calibration software for nuisance alarm discrimination
- Ideal for high-security applications requiring remote capable APUs
- PL1-N nuclear approved
- Electrical substations
- Solar farms
- Aviation and train locations
- Oil and chemical facilities
- Military facilities
- Nuclear power locations
- Correctional facilities
- Dual Zones Coverage The FD34x provides both single channel (FD341) or independent dualchannel (FD342) operation, and users can connect sensor cable from two separate deployment locations. Dual-channel capability reduces the FD342 overall system cost and power consumption. Independent zone control allows for maximum versatility, such as a wall and a fence protection zone combination. The FD34x also provides intrusion detection system control with communication options that include IP/XML capability.
- Proven Reliability The FD34x series Digital Signal Processor (DSP) and electronics provides users an intrusion detection system that is immune to the effects of EMI, lightning, magnetic fields and radio frequency transmissions. Enhanced DSP capabilities filter out sensor cable signals from non-threat events such as wind, weather and small animals. Made in the U.S.A., the FD34x guarantees system performance and high reliability for perimeter security.
- FD342 Spec Sheet
- FD342 Brochure
FD348R Fibre optic sensor
This rack-mounted Alarm Processor Unit (APU) is equipped with TCP/IP (via XML messaging) and detection zones up to 5km; with insensitive lead-in cable up to 20km for remote APU deployment. The RK-348 rack housing holds up to eight FD348R APUs.
- The APU can be located remotely (up to 20km)
- 5km sensing cable (available separately)
- Sensor cable immune to EMI, RFI, and lightning
- 25+ configuration parameters
- Comes with SpectraView™ calibration software for nuisance alarm discrimination
- Protected Distribution Systems (PDS).
- Military facilities.
- Government networks.
- Corporate networks.
- College campuses.
- Commercial installations.
- Sensor immune to EMI and RFI
- Supports multiple-zone operation.
- Sensing cable up to 5 km.
- 20 km remote lead-in cable capability.
- IP/XML communication option.
- Linear, uniform sensitivity.
- FD348R Perimeter Spec Sheet
- FD348R Data Security Spec Sheet
- FD348R Brochure
FD508 Fibre optic sensor
800m Fibre optic detector for fence-protected perimeters.
- Up to 8 fully independent zones
- Durable fibre-optic sensing
- Can be fully integrated with any system solution
- Includes custom tuning software
- Electrical substations
- Solar power generation facilities
- Oil and gas facilities
- Government and military perimeters
- Up to eight fully independent zones, each of which can support up to 800 meters of sensing fiber.
- Durable fiber-optic sensing unaffected by chemical or electrical environmental elements that include corrosion, EMI and lightning strikes.
- The FD508 can be fully integrated with any industry standard head end system for a total system solution when combined with other security elements (cameras, lights, etc.).
- Includes custom tuning software.
- FD508 Brochure
- FD50x Spec Sheet
FD525 Fibre optic sensor
FD525 Fibre optic sensorRack-mounted Fiber Optic Alarm Processing Unit and distribution assembly
- Supports up to 25 zones in a stand-alone APU
- Simultaneous intrusion detection (all zones)
- Maximum sensor cable length (per zone) – 800 meters
- Intelligent zone assignment and zone re-ordering
- FD500 Series software suite for nuisance alarm discrimination
- Linear, uniform sensitivity
- XML and form C contact closure communications capability.
- Electrical substations
- Oil pipelines
- Aviation and train locations
- Oil and chemical facilities
- Protected Distribution Systems (PDS)
- Military facilities
- Pharmaceutical facilities
- Supports up to 25 zones in a stand-alone APU
- Simultaneous intrusion detection (all zones)
- Maximum sensor cable length (per zone) – 800 meters
- Intelligent zone assignment and zone re-ordering
- FD500 Series software suite for nuisance alarm discrimination
- Linear, uniform sensitivity
- XML and form C contact closure communications capability.
- FD525 Brochure
- FD525 Spec Sheet
FD525 HALO Fibre optic sensor
FD525 HALO Fibre optic sensorThe FD525-HALO™ is an easy-to-install fiber-optic intrusion detection system with up to 25 independent zones, impressive probability of detection (PD) and un-matched nuisance alarm discrimination
- Up to 25 fully independent zones with a maximum cable length of 5.8 km (3.6 miles).
- A unified cable design multiplexed through a multi-fiber hybrid cable and breakout boxes.
- Durable fiber-optic sensing unaffected by chemical, electrical or environmental elements such as corrosion, RFI, EMI, and lightning.
- XML via Ethernet and relay modules ensures a high level of integration and communication options.
- The system can be fully integrated with head end systems for a total system solution when combined with other security elements such as video cameras and other third-party devices.
- Insensitive lead-in cable allows for remote APU deployment – up to 5 km maximum length.
- Tuning and calibration discrimination software in the FD500 Series Software Suite eliminates nuisance alarms.
- Larger industrial
- Airports
- Solar farms
- Up to 25 fully independent zones with a maximum cable length of 5.8 km (3.6 miles).
- A unified cable design multiplexed through a multi-fiber hybrid cable and breakout boxes.
- Durable fiber-optic sensing unaffected by chemical, electrical or environmental elements such as corrosion, RFI, EMI, and lightning.
- XML via Ethernet and relay modules ensures a high level of integration and communication options.
- The system can be fully integrated with head end systems for a total system solution when combined with other security elements such as video cameras and other third-party devices.
- Insensitive lead-in cable allows for remote APU deployment – up to 5 km maximum length.
- Tuning and calibration discrimination software in the FD500 Series Software Suite eliminates nuisance alarms.
- FD525-HALO Spec Sheet
FD525R Fibre optic sensor
FD525R Fibre optic sensorRack-mounted Fiber Optic Alarm Processing Unit and distribution assembly
- Supports up to 25 zones, each fully independent and tunable
- Simultaneous intrusion detection (all zones)
- Maximum sensing cable length (per zone) – 800 meters
- Intelligent zone assignment and zone re-ordering
- FD500 Series software suite for nuisance alarm discrimination
- XML and contact closure communications capability
- Designed to fit in standard 19” data center rack.
- Military Facilities
- Oil and Gas Pipelines
- Electrical Substations
- Nuclear Power Plants
- Airports
- Pharmaceutical Facilities
- Chemical Depots
- Supports up to 25 zones, each fully independent and tunable
- Simultaneous intrusion detection (all zones)
- Maximum sensing cable length (per zone) – 800 meters
- Intelligent zone assignment and zone re-ordering
- FD500 Series software suite for nuisance alarm discrimination
- XML and contact closure communications capability
- Designed to fit in standard 19” data center rack.
- FD525R Brochure
- FD525R Spec Sheet
i-oneX T
i-oneX T
Activation and Safety Enquire Product Details Applications Key Features Specifications Downloads- BLUEZONE™ Technology
When a person or object is detected in the approach area, the sensor activates the door and turns on the BLUEZONE™ that detects through the threshold. The sensor holds the door in the open position for as long as someone is in the detection area. Once the area is clear, the BLUEZONE™ ignores the door panels and allows the door to safely close. - Built-in Supplemental Side Light Safety
The i-oneX T has a wide and deep detection area that covers not only the threshold area but also the sidelight area. The i-oneX T provides supplemental sidelight safety all from a single sensor. Provide your customers with the highest level of safety and functionality with the i-oneX T from OPTEX. - Easy Adjustment
The sensor can be quickly adjusted for many different applications using the easily set switches and shutters. No external set-up device is needed.
- Buildings
- Blue zone technology
- supplemental sidelight safety
- Adaptable to all environments
- Superior stability
- Optex i-oneX T Catalog
- Optex i-oneX T Web Manual
MIRAGE
MIRAGEThe Optex Mirage is the optimal choice as an active infrared recessed mounted sensor. The sensor is designed to be installed in the header of the door operator or as a built in ceiling mount sensor. The Optex Mirage offers you both safety and activation on all types of automatic doors. It combines easy adjustable settings, providing maximum safety in a wide array of applications.
Enquire
Product Details
Accessories
Downloads
Easy installationThe Optex Mirage is simple to install. All the settings are mechanically adjustable with dipswitch and levers. The smart design makes that the engineer can easily reach the sensor in case adjustment of a setting is necessary.SafetySafety is assured by the two rows of presence detection closest to the door. The sensor detects a person or object and holds the door open as long as they are near the threshold area, even if they stop or pause. Of course the Optex Mirage can also be used as presence detection sensor only, for example as a rear edge safety sensor.DesignThe Optex Mirage is designed for installation in the header of the door operator or as a ceiling mount sensor. Due to its recessed mounted design and the 2 rows of presence detection, this sensor is an elegant and safe solution for installation in the ceiling of curved doors.All conditionsSnow mode and variable sensitivity adjustments make this sensor suitable for every application and even extreme weather conditions.QualityOptex automatic door sensors guarantee premium performance and include a 3-year full replacement warranty.Functionality Activation Safety CombinationOpening Size Small Medium
.elementor-2929 .elementor-element.elementor-element-55e8d274:not(.elementor-motion-effects-element-type-background), .elementor-2929 .elementor-element.elementor-element-55e8d274 > .elementor-motion-effects-container > .elementor-motion-effects-layer{background-color:var( --e-global-color-astglobalcolor5 );}.elementor-2929 .elementor-element.elementor-element-55e8d274{transition:background 0.3s, border 0.3s, border-radius 0.3s, box-shadow 0.3s;}.elementor-2929 .elementor-element.elementor-element-55e8d274 > .elementor-background-overlay{transition:background 0.3s, border-radius 0.3s, opacity 0.3s;}.elementor-2929 .elementor-element.elementor-element-144ac520 > .elementor-element-populated{border-style:solid;border-width:1px 1px 1px 1px;transition:background 0.3s, border 0.3s, border-radius 0.3s, box-shadow 0.3s;margin:0px 10px 0px 0px;--e-column-margin-right:10px;--e-column-margin-left:0px;}.elementor-2929 .elementor-element.elementor-element-144ac520 > .elementor-element-populated > .elementor-background-overlay{transition:background 0.3s, border-radius 0.3s, opacity 0.3s;}.elementor-2929 .elementor-element.elementor-element-42a8e5d7{text-align:center;}.elementor-2929 .elementor-element.elementor-element-18294665 > .elementor-element-populated{border-style:solid;border-width:1px 1px 1px 1px;transition:background 0.3s, border 0.3s, border-radius 0.3s, box-shadow 0.3s;margin:0px 10px 0px 0px;--e-column-margin-right:10px;--e-column-margin-left:0px;}.elementor-2929 .elementor-element.elementor-element-18294665 > .elementor-element-populated > .elementor-background-overlay{transition:background 0.3s, border-radius 0.3s, opacity 0.3s;}.elementor-2929 .elementor-element.elementor-element-22da9557 > .elementor-element-populated{border-style:solid;border-width:1px 1px 1px 1px;transition:background 0.3s, border 0.3s, border-radius 0.3s, box-shadow 0.3s;margin:0px 10px 0px 0px;--e-column-margin-right:10px;--e-column-margin-left:0px;}.elementor-2929 .elementor-element.elementor-element-22da9557 > .elementor-element-populated > .elementor-background-overlay{transition:background 0.3s, border-radius 0.3s, opacity 0.3s;}
Infrared finder
- Optex MIRAGE Manual
- Optex MIRAGE Catalog
OA-4700
Shutter sensor with mounting height up to 4.7m
- Excellent stability with high density launch area
- High density seatway area improves safety
- Misoperation reduction by seat cancellation
- Area can be independently changed
- Equipped with infinite stop function when multiple areas are detected
- Equipped with additional functions
- Excellent stability with high density launch area - In addition to the spot area arrangement assuming entry from all directions, a high-density area of 60 spots with 5 rows of 12 areas provides safe and comfortable passage.
- High density seatway area improves safety - By installing a high-density seatway area with 12 spots directly under the seat, it supports the safety of vehicles and passers-by.
- Misoperation reduction by seat cancellation - Equipped with a sheet cancellation function that reduces malfunctions caused by shutter shake.
- Area can be independently changed - The safety of both areas can be ensured by setting an area for each of the steps and the vicinity of the shutter.
- Equipped with infinite stop function when multiple areas are detected
- Equipped with additional functions - Equipped with two system output contacts, a stationary object detection function, and an interlock mode.
- Buildings
- Optex OA-4700 Catalog
OA-6000
ACTIVE INFRARED SENSOR
- Long-range detection area
- High mounting position with sufficient sensitivity
- Stable operation
- Flexibility
- OPTEX OA-6000 detection area adjusts 160 vertically and 360 horizontally, detecting from high mounting positions up to 6 meters
- Long-range detection area – OPTEX OA-6000 provides a long-range detection area even from high mounting position.
- High mounting position with sufficient sensitivity – Stable detection performance at high mounted position.
- Stable operation – OPTEX OA-6000 will not activate shutters by too much of a wide detection area.
- Flexibility – Detection area can be adjusted 160º vertically and 360º horizontally.
- Factory
- Warehouse
- Long-range detection area
- High mounting position with sufficient sensitivity
- Stable operation
- Flexibility
- Optex OA-6000 Catalog
- Optex OA-6000 Manual
OA-6500S T
ACTIVE INFRARED SENSOR
- Activation and Safety Combination
- Suitable for industrial applications
- Motion detection
- Easy adjustment
- The OPTEX OA-6500 is based on active infrared technique, combining activation and safety into one sensor.
- Combination – The OPTEX OA-6500 is based on active infrared technique, combining activation and safety into one sensor. By using the unique OPTEX presence detection technique the OA-6500 series provides maximum safety around the threshold of an industrial door and offers, at the same time, an extra large motion detection area for door activation with its maximum installation height up to 6.5m.
- Suitable for industrial applications – The OPTEX OA-6500 has a lot of functions optimized for industrial doors. – The 1st row equipped with door cancel function reduces the malfunction caused by the door movement. – The activation & safety outputs can be selected from N.C. and N.O. simply by selecting the dipswitches. – The automatic infinite presence detection increase safely and avoid unwanted door opening due to sudden change in floor condition.
- Motion detection – The large detection area provides fast detection for any traffic, including trucks, approaching from any angle. The sensor’s enhanced pattern depth enables it to detect objects farther away and allows the door to open conveniently. The presence and motion detection area’s can be adjusted independently.
- Easy adjustment – Installation time can be reduced to a minimum by using easily set switches and trimmers, therefore the sensor can be quickly adjusted for many different applications. To adjust the presence detection area the use of an OPTEX Infrared finder is recommended.
- Factory
- Warehouse
- Activation and Safety Combination
- Suitable for industrial applications
- Motion detection
- Easy adjustment
- Optex OA-6500 Catalog
- Optex OA-6500 Manual
OA-72C
Activation and Safety
- Flexible area settings
- Simple adjustment with no tool
- Adaptable to all environments
- Superior stability
- Flexible area settings – The detection depth can be adjusted by either simultaneous adjustment of four rows or by independent adjustment of the pairs of rows or by independent adjustment of the pairs of rows near and further away from the door.
- Simple adjustment with no-tool – Install by simply pushing the unit into installation holes.
- Adaptable to all environments – The detection areas can be freely adjusted in the left, right, and longitudinal directions. The unit makes reliable detection and activation possible right up to the door for various kinds of applications.
- Superior stability – AIR sensors and micro-controllers are generally immune to the effects of external factors such as rain, snow, and insects.
- Buildings
- Flexible area settings
- Simple adjustment with no tool
- Adaptable to all environments
- Superior stability
- Optex OA-72C Manual
- Optex OA-72C Catalog
OA-AXIS II
Activation and Safety
Enquire
Product Details
Features
Downloads
The OPTEX OA-AXIS series is the new automatic door standard for use on sliding doors based on the active infrared technique. The OA-AXIS series has been developed as a combination sensor for threshold safety and activation. Combination The OPTEX OA-AXIS series is the world’s first door sensor based solely on the active infrared technique, combining activation and safety into one sensor. By using the unique OPTEX presence detection technique, the OA-AXIS series provides maximum safety around the threshold while simultaneously offering a large motion detection area for the door activation. Safety The active infrared presence detection of the OA-AXIS series can be set very accurately and can be moved 6° toward or away from the door. The installation of safety beams is no longer mandatory. The sensor detects a person or object and holds the door open for as long as they are in or near the threshold area, even if they stop or pause. Motion Detection The large detection area enables rapid detection of any traffic, including trolleys, approaching from any angle. The sensor’s enhanced pattern depth means it can detect people and objects farther away, thus allowing the door to open conveniently for them. The presence and motion detection areas can be adjusted independently. Variety By offering different types of output contacts the OA-AXIS series meets the requirements and local standards in many different markets.
OA-AXIS I: 1 relay output for activation and safety
OA-AXIS II: 1 relay for safety and a second relay for motion/activation Easy Adjustment Installation time can be minimized using the easily set switches and shutters, meaning the sensor can be quickly adjusted for many different applications. The use of an OPTEX Infrared finder is recommended to adjust the presence detection area. Detection Area OA-AXIS I / OA-AXIS II Sensor setting
1st to 3rd rows: +6°
4th and 5th rows: +44° mm (feet, inch) Mounting height
A 2200 (7'3'') 2500 (8'2'') 2700 (8'10'') 3000 (9'10'') 3500 (11'6'') B 140 (6'') 160 (6'') 180 (7'') 200 (8'') 230 (9'') C 420 (1'5'') 480 (1'7'') 520 (1'8'') 580 (1'11'') 670 (2'2'') D 820 (2'8'') 930 (3'1'') 1000 (3'3'') 1100 (3'7'') 1300 (4'3'') E 1350 (4'5'') 1540 (5'1'') 1660 (5'5'') 1850 (6'1'') 2160 (7'1'') F 1900 (6'3'') 2170 (7'1'') 2340 (7'8'') 2600 (8'6'') 3030 (9'11'') G 1330 (4'4'') 1510 (4'11'') 1630 (5'4'') 1810 (5'11'') 2110 (6'11'') H 2050 (6'9'') 2320 (7'7'') 2510 (8'3'') 2790 (9'2'') 3260 (10'8'') I 2780 (9'1'') 3150 (10'4'') 3400 (11'2'') 3790 (12'5'') 4420 (14'6'')
- Combination
- Safety
- Motion Detection
- Variety
- Easy Adjustment
Enquire
Product Details
Features
Downloads
The OPTEX OA-AXIS series is the new automatic door standard for use on sliding doors based on the active infrared technique. The OA-AXIS series has been developed as a combination sensor for threshold safety and activation. Combination The OPTEX OA-AXIS series is the world’s first door sensor based solely on the active infrared technique, combining activation and safety into one sensor. By using the unique OPTEX presence detection technique, the OA-AXIS series provides maximum safety around the threshold while simultaneously offering a large motion detection area for the door activation. Safety The active infrared presence detection of the OA-AXIS series can be set very accurately and can be moved 6° toward or away from the door. The installation of safety beams is no longer mandatory. The sensor detects a person or object and holds the door open for as long as they are in or near the threshold area, even if they stop or pause. Motion Detection The large detection area enables rapid detection of any traffic, including trolleys, approaching from any angle. The sensor’s enhanced pattern depth means it can detect people and objects farther away, thus allowing the door to open conveniently for them. The presence and motion detection areas can be adjusted independently. Variety By offering different types of output contacts the OA-AXIS series meets the requirements and local standards in many different markets.
OA-AXIS I: 1 relay output for activation and safety
OA-AXIS II: 1 relay for safety and a second relay for motion/activation Easy Adjustment Installation time can be minimized using the easily set switches and shutters, meaning the sensor can be quickly adjusted for many different applications. The use of an OPTEX Infrared finder is recommended to adjust the presence detection area. Detection Area OA-AXIS I / OA-AXIS II Sensor setting
1st to 3rd rows: +6°
4th and 5th rows: +44° mm (feet, inch) Mounting height
A 2200 (7'3'') 2500 (8'2'') 2700 (8'10'') 3000 (9'10'') 3500 (11'6'') B 140 (6'') 160 (6'') 180 (7'') 200 (8'') 230 (9'') C 420 (1'5'') 480 (1'7'') 520 (1'8'') 580 (1'11'') 670 (2'2'') D 820 (2'8'') 930 (3'1'') 1000 (3'3'') 1100 (3'7'') 1300 (4'3'') E 1350 (4'5'') 1540 (5'1'') 1660 (5'5'') 1850 (6'1'') 2160 (7'1'') F 1900 (6'3'') 2170 (7'1'') 2340 (7'8'') 2600 (8'6'') 3030 (9'11'') G 1330 (4'4'') 1510 (4'11'') 1630 (5'4'') 1810 (5'11'') 2110 (6'11'') H 2050 (6'9'') 2320 (7'7'') 2510 (8'3'') 2790 (9'2'') 3260 (10'8'') I 2780 (9'1'') 3150 (10'4'') 3400 (11'2'') 3790 (12'5'') 4420 (14'6'')
- The actual detection area may become smaller depending on the ambient light, the color / material of the object or the floor as well as the entry speed of the object.
- The values of the chart above is of the emitting spots, but not of the detection area.
- Optex OA-AXIS manual
- Optex OA-AXIS Catalog
OA-AXIS T
Activation and Safety
- Combination
- Safety
- Motion Detection
- Variety
- Easy Adjustment
- Combination
The OPTEX OA-AXIS T is the world’s first door sensor based solely on the active infrared technique, combining activation and safety in one sensor. By using the unique OPTEX presence detection technique, the OA-AXIS T ensures maximum safety around the threshold while simultaneously providing a large motion detection area for the door activation. - Safety
The active infrared presence detection of the OA-AXIS T can be set very accurately and can be moved 6° toward or away from the door. The installation of safety beams is no longer mandatory. The sensor detects a person or object and holds the door open for as long as they are in or near the threshold area, even if they stop or pause. The OPTEX OA-AXIS T has been tested and approved by the German test organization TÜV and complies with the German DIN 18650 and European Norm EN 16005. - Motion detection
The large detection area provides rapid detection of any traffic, including trolleys, approaching from any angle. The sensor’s enhanced pattern depth enables it to detect people and objects farther away and allows the door to open conveniently for them. The presence and motion detection areas can be adjusted independently. - Variety
By offering different types of output contacts, the OA-AXIS series meets the requirements and local standards in many different markets.
OA-AXIS I: 1 relay output for activation and safety
OA-AXIS II: 1 relay for safety and a second relay for motion/activation
OA-AXIS T: 1 relay for motion and activation and an Opto coupler (NPN) in/output for safety - Easy adjustment
Installation time can be minimized using the easily set switches and shutters, meaning the sensor can be quickly adjusted for many different applications. The use of an OPTEX Infrared finder is recommended to adjust the presence detection area.
- Optex OA-AXIS T manual
- Optex OA-AXIS T Catalog
OA-EDGE T
OA-EDGE T M 340BL / OA-EDGE T M 340S / OA-EDGE T S 340BL / OA-EDGE T S 340S / OA-EDGE T M 700BL / OA-EDGE T M 700S / OA-EDGE T S 700BL / OA-EDGE T S 700S / OA-EDGE T MS 700BL / OA-EDGE T MS 700S / OA-EDGE T M 900BL / OA-EDGE T M 900S / OA-EDGE T S 900BL / OA-EDGE T S 900S / OA-EDGE T MS 900BL / OA-EDGE T MS 900S / OA-EDGE T MS 1200BL / OA-EDGE T MS 1200S
Enquire
Product Details
Applications
Key Features
Downloads
The OPTEX OA-EDGE T has been developed to increase the safety of automatic swing doors. The OA-EDGE T is based on OPTEX Active Infrared triangulation technology. Due to its modular design, you can upgrade the safety level of the sensor by adding additional modules. The OA-EDGE T complies with the latest European regulation EN 16005 and has been tested and approved by the German test organization TÜV.
- Easy Installation
The sensor is easy to install by simply clicking the main and secondary modules into the profile. The main and secondary modules are connected by a communication cable with connector. An alternative power supply connector on the main module makes installation quicker and more flexible. - Slim Design
The sensor has a very slim design to ensure it will fit on many different types of swing door. The sensor is available in a silver or black profile complete with a black lens. - Safety
The wide detection area of each module ensures a high level of safety around the door and will prevent the door leaf from hitting an object or person near the door. The OPTEX OA-EDGE T has been tested and approved by the German test organization TÜV and complies with EN 16005. - Module
The sensor can be assembled using main and secondary modules according to the required safety level and the width of the swing door. For a standard configuration of 1 sensor, one main module is required. Depending on the door width, a maximum of 3 secondary modules can be connected to this main module. - Quick Adjustment
Adjustments to the sensor are made using dipswitches and a levelling screw. Once the sensor is set up, an easy push on the function switch will launch the initialization and learning cycle. After installation, the sensor status can be easily checked on the visible LED.
- Buildings
- Easy Installation
- Complies with EN 16005 safety standards
- Slim Design
- Optex OA-Edge T Catalog
- Optex OA Edge T Manual
OA-FLEX AIR T(BL)
Activation and Safety
- Blue zone technology
- Unique Spot Activation Area
- Adaptable to all environments
- Superior stability
- Pushbutton Activation Function
The special OA-FLEX AIR T version offers one narrow activation zone. By marking a zone on the doors or the wall the narrow zone can be used as a virtual touchless switch for activating the doors. The pushbutton function will minimize false openings, making it ideal for hospital or kitchen door applications. All rows are active as soon as the sensor is activated. The sensor will also work as a regular OA-FLEX T offering adjustable activation zones and full door safety and replaces additional safety sensors. - BLUEZONE™ Technology
The presence detection area in the OA-FLEX AIR T consists of three rows: two rows in front of the door and one additional BLUEZONE™ row that looks into the threshold. The BLUEZONE™ activates as soon as the doors start to open and adds an additional row of active infrared. All three rows will be active when someone or something is within the threshold area for as long as the presence timer is set. When the area is safe the doors will start to close again. The BLUEZONE™ recognizes the door movement and will automatically shut off. - Easy Adjustment
Installation time can be minimized using the easily set switches and levers, meaning the sensor can be quickly adjusted for many different applications to modify the presence detection area.
- Buildings
- Blue zone technology
- Unique Spot Activation Area
- Adaptable to all environments
- Superior stability
- Optex OA-FLEX AIR T Manual
OA-FLEX T
Activation and Safety
- Blue zone technology
- Adaptable to all environments
- Superior stability
- BLUE ZONE – When the approach area detects a person or object, the sensor will activate the door and turn on the “BLUE ZONE” which detects through the threshold. As long as someone is in the detection area, the sensor will keep the door in the open position. Once the area is cleared, the “BLUE ZONE” will ignore the door panels and allow the door to safely close.
- Adaptable to all environments – The detection areas can be freely adjusted in the left, right and longitudinal directions. The unit makes reliable detection and activation possible right up to the door for various kind of applications.
- Superior stability – AIR sensors and micro-controllers are generally immune to the effects of external factors such as rain, snow and insects.
- Buildings
- Blue zone technology
- Adaptable to all environments
- Superior stability
- Optex OA-FLEX T Manual
- Optex OA-FLEX T Catalog
OA-FUNXION LITE
ACTIVE INFRARED SENSOR
- Self-Monitoring
- Wide Detection Area
- Buildings
- Flexibility for Safety and Reliability
- Self-Monitoring
- Optex OA-FUNXION LITE Catalog
- Optex OA-FUNXION LITE Manual
OA-PRESENCE TN
OA-PRESENCE TN
Enquiry Now
Product Details
Applications
Key Features
Downloads
The OPTEX OA-PRESENCE TN is designed to create optimum safety around sliding doors. When using the OA-PRESENCE TN for threshold safety the use of safety beams is no longer mandatory. The OA-PRESENCE TN enables you to install maximum safety in compliance with the latest European and local regulations, including EN 16005 and DIN 18650. The OA-PRESENCE TN has been tested and approved by the German test organization TÜV.
- Side Screen Safety
The OA-PRESENCE TN can be used as a side screen safety sensor. By installing the sensor at the rear end of the door, the OA-PRESENCE TN will secure the side screen area and prevent the doors from hitting someone or something during their opening cycle. - Threshold Safety
The OPTEX OA-PRESENCE TN is the ideal sensor for threshold safety used in combination with external activators like push buttons, security systems, or any kind of activation sensor. By using the OA-PRESENCE TN the threshold is completely secured and prevents the door from closing when it is open or during the closing cycle. - Presence Detection
The active infrared presence detection of the OA-PRESENCE TN can be set very accurately and moved 5° toward or away from the door. When used as a threshold safety sensor the installation of safety beams is no longer mandatory. The sensor detects a person or object and holds the door open for as long as they are in the threshold area, even if they stop or pause. The OPTEX OA-PRESENCE TN has been tested and approved by the German test organization TÜV and complies with DIN 18650 and European norm EN 16005. - Recessed Mount Installation
By installing the OA-PRESENCE TN on a mounting bracket (supplied by the door manufacturer), it is easy to integrate the sensor into the header of the door operator. The sensor is accessible from the bottom so installation and settings can be carried out without removing the operator’s cover.
- Buildings
- Complies with EN 16005 and DIN 18650 safety standards
- Side Screen Safety
- Presence Detection
- Optex OA Presence TN Spec sheet
- Optex OA Presence TN Catalog
- Optex OA Presence TN Manual
OAM-DUAL T
Activation and Safety
- Bluezone Technology
- Motion Detection
- Easy Installation
- BLUEZONE™ Technology
When a person or object is detected in the approach area, the sensor activates the door and turns on the BLUEZONE™ that detects through the threshold. The sensor holds the door in the open position for as long as someone remains in the detection area. Once the area is clear, the BLUEZONE™ ignores the door panels and allows the door to safely close.
This row is automatically shut off once the whole of the presence detection area has cleared and as soon as the doors start to close. The installation of safety beams is no longer mandatory. The OPTEX OAM-DUAL series has been safety-tested and approved by the German test organization TÜV in compliance with the German DIN 18650:2010 and European Norm EN 16005. - Motion Detection
The large microwave motion detection area provides rapid detection of any traffic, approaching from any angle, which allows the door to open conveniently. The presence and motion detection areas can be adjusted independently. By selecting a dipswitch the active infrared detection area can be set to safety only or to safety and activation. The uni-directional function allows the door to close faster when traffic is moving away from the door, contributing to significant energy saving. - Easy Installation
Installation time can be minimized using the easily set switches and shutters, meaning the sensor can be quickly adjusted for many different applications. The use of an OPTEX Infrared finder is recommended to adjust the presence detection area.
- Buildings
- Blue zone technology
- Adaptable to all environments
- Superior stability
- Optex OAM Dual T Catalog
- Optex OAM Dual T Manual
OAM-EXPLORER
ACTIVE INFRARED AND MICROWAVE SENSOR
- Configuration and Fine-tuning via smartphone app
- Wide Detection Area
- Buildings
- Optex OAM-EXPLORER Catalog
- Optex OAM-EXPLORER Manual
OM-105C/106C
The Optex OM-105C and 106C microwave sensors are especially designed to increase the comfort on opening all types of automatic doors. The Optex microwaves provide fast detection for all automatic door installations and particularly for applications with high-speed entries. Due to the industrial design and easy installation these sensors will fit on every header or ceiling in any application you can imagine.
Enquire
Product Details
Applications
Key Features
Specifications
Accessories
Downloads
Detection areaThe Optex microwave range offers a narrow or wide detection area that makes it suitable for all types of installations. The narrow setting is easy to set by just clicking the narrow lens on to the radar module. By turning the module left or right and tilting it up and down the microwave can be adjusted quick and simple for many different applications. No external set-up device is needed.Swing door activationWhen installed above the pivot the Optex OM-106C will ignore the door movement of a swing door. Therefore it is ideal to install as swing door activation sensor.Auto-Caution modeThe Auto-Caution Mode guarantees more reliability to prevent the door from closing, even if a person is wavering in the detection area. The sensor will immediately change from uni directional to multi directional for safety purposes. This function is only available on the OM-106C.Uni-directional settingThe OM-106C is equipped with a dipswitch for uni directional or bi directional mode. By selecting the uni directional mode the sensor will only detect traffic approaching the door, allowing the door to close more quickly for departing traffic. Fast closing of doors offers a large benefit for the end user, because the doors will stay open for a limited time and therefore they will contribute to saving energy.QualityOptex automatic door sensors guarantee premium performance and include a 3-year full replacement warranty.Functionality ActivationOpening Size Small Medium Large
- Buildings
- Stylish design
- Flexible detection area
- Special accessories as an optional choice
- Optex OM-105c/106c manual
- Optex OM-105C/106C Catalog
Optical Dissolved Oxygen Sensor DOS Series
Optical Dissolved Oxygen Sensor DOS Series[Parts No. 05160]
* The PVC pipe VP-20 and a standard fitting to be prepared by the user.
- Compatible with MLSS Analyzers for biological treatment or MBR processes
- Durable Construction – Made with robust, inert ABS material
- Long-Term Stability – Unaffected by variations in water flow rate
- Compatible with MLSS Analyzers for biological treatment or MBR processes
- Durable Construction – Made with robust, inert ABS material
- Long-Term Stability – Unaffected by variations in water flow rate
- Catalog
- Installation Manual
- Dimensions
* The PVC pipe VP-20 and a standard fitting to be prepared by the user.
ORP Sensor SE-ORP-D Series
ORP Sensor SE-ORP-D Series[Parts No. 05331]
* The PVC pipe VP-20 and a standard fitting to be prepared by the user. Replacement electrode: SE-ORP-EL[Parts No. 05334]
- Electrode replacement is quick and simple
- No tools required for the replacement of the electrode
- Electrode replacement is quick and simple
- No tools required for the replacement of the electrode
- Catalog
- Installation Manual
- Dimensions
* The PVC pipe VP-20 and a standard fitting to be prepared by the user. Replacement electrode: SE-ORP-EL[Parts No. 05334]
OS-12C
ACTIVE INFRARED SENSOR
Enquire
Product Details
Applications
Key Features
Specifications
Downloads
- Beam for safety
- Automatic adjustment to optimum sensitivity
- Self-diagnosis function
- Multi-use 1beam/2beam amplifier for reduced size and weight
- Safety in case of failure (Failsafe)
Enquire
Product Details
Applications
Key Features
Specifications
Downloads
- Easy Installation
The OPTEX OS-12C amplifier has screwless wiring terminals, which enables faster installation. Pressing the “Teach-In” button automatically sets the proper sensitivity and self-corrects crossed cables. One amplifier operates one or two pairs of sensor heads. - Reliable Sensor Heads
The OPTEX SH-7MC/SH-10MC sensor heads are recognized by door professionals worldwide for their reliability and resistance to sunlight and other interference. Quick-disconnect plugs make installation and service fast and easy. Cables are available in 2 lengths, 7 m (23 feet) or 10 m (33 feet). - Safety
For maximum safety, the amplifier is fail-safe, ensuring that the doors will remain open in the event of any damage to the components. Two LED indicators will blink at the initial setup to alert the installer if the OS-12C is improperly aligned or if sensitivity is insufficient. - Multifunctional Design
The compact design and standard 15 mm beam heads mean the OS-12C is compatible with any type of automatic door and is easy to service or maintain. Optional mounting accessories allow surface or recessed installation and include a reflector kit for simplified wiring. This safety beam is optimal for use with any sliding door, including train doors and automatic gates.
- Buildings
- Automatic adjustment to optimum sensitivity
- Self-diagnosis function
- Multi-use 1beam/2beam amplifier for reduced size and weight
- Failsafe specification
OS-12C T
ACTIVE INFRARED SENSOR
- Beam for safety
- Automatic adjustment to optimum sensitivity
- Self-diagnosis function
- Multi-use 1beam/2beam amplifier for reduced size and weight
- Safety in case of failure (Failsafe)
- Easy Installation
The OPTEX OS-12CT amplifier has screwless wiring terminals, which enables faster installation. Pressing the “Teach-In” button automatically sets the correct sensitivity and self-corrects crossed cables. One amplifier operates one or two pairs of sensor heads. - Reliable Sensor Heads
The OPTEX SH-7MC/SH-10MC sensor heads are recognized by door professionals worldwide for their reliability and resistance to sunlight and other interference. Quick-disconnect plugs make installation and service fast and easy. Cables are available in 2 lengths, 7 m (23 feet) or 10 m (33 feet). - Safety
For maximum safety, the amplifier is fail-safe, ensuring that the doors will remain open in the event of any damage to the components. Two LED indicators will blink at the initial setup to alert the installer if the OS-12CT is improperly aligned or if sensitivity is insufficient. - Multifunctional Design
The compact design and standard 15 mm beam heads mean the OS-12CT is compatible with any type of automatic door and is easy to service or maintain. Optional mounting accessories allow surface or recessed installation and include a reflector kit for simplified wiring. This safety beam is optimal for use with any sliding door, including train doors and automatic gates. - Monitoring Capability
The OS-12CT has monitoring capability. It monitors all of its critical functions and notifies controls if an error occurs. Self-monitoring capability ensures a higher level of performance over the life of the sensor.
- Buildings
- Automatic adjustment to optimum sensitivity
- Self-diagnosis function
- Multi-use 1beam/2beam amplifier for reduced size and weight
- Failsafe specification
- Optex OS-12 C T Catalog
- Optex OS-12C T Manual
OVS-01CC
Microwave (Doppler shift and FMCW)
- Car counting sensor
- Pole mount sensor – no civil engineering work required
- Microwave (FMCW) detection adjustable from 1 to 8m
- Reliable in a harsh environment (snow, dust, rain)
- Detecting vehicles at a speed from 2 to 60km/h
- IP65
- High-performance sensing with Microwave (Doppler shift and FMCW)
- Pole mount sensor – no civil engineering work required
- Microwave (FMCW) detection adjustable from 1 to 8m
- Reliable in a harsh environment (snow, dust, rain)
- Detecting vehicles at a speed from 2 to 60km/h
- Built-in heater (Automatically activates based on the outside temperature)
- IP65
- Building
- Shopping mall
- House
- Pole mount sensor – no civil engineering work required
- Microwave (FMCW) detection adjustable from 1 to 8m
- Reliable in a harsh environment (snow, dust, rain)
- Detecting vehicles at a speed from 2 to 60km/h
- IP65
- OPTEX OVS-01CC Catalog【PDF】
- OPTEX OVS-01CC Manual【PDF】
OVS-01GT
Combination of Microwave and Ultrasonic Technology
- Easy installation and construction period can be shorted
- Combination of microwave (Doppler shift, FMCW technologies) and ultrasonic wave
- For gate, barrier, and industrial door activation
- Detecting vehicles at a speed from 2 to 20km/h
- IP65
- Combination of microwave (Doppler shift, FMCW technologies) and ultrasonic wave
- Easy installation as its pole mount sensor – no civil engineering work required
- For gate, barrier, and industrial door activation
- Detecting vehicles at a speed from 2 to 20km/h
- Built-in heater (Automatically activates based on the outside temperature)
- IP65
- Building
- Shopping mall
- House
- Easy installation and construction period can be shorted
- Combination of microwave (Doppler shift, FMCW technologies) and ultrasonic wave
- For gate, barrier, and industrial door activation
- Detecting vehicles at a speed from 2 to 20km/h
- IP65
- OPTEX OVS-01GT Catalog【PDF】
- OPTEX OVS-01GT Manual【PDF】
OVS-02GT
Microwave FMCW technology.
- No in ground device required. Possible to be used at outdoor.
- Easy installation. Easy setting with dedicated app.
- No need to burial underground.
- Strong against rain, wind and snow.
- Not affected by vehicle color
- Only detects vehicles.
- Building
- Shopping mall
- House
- No in ground device required. Possible to be used at outdoor.
- Easy installation. Easy setting with dedicated app.
- No need to burial underground.
- Strong against rain, wind and snow.
- Not affected by vehicle color
- Only detects vehicles.
- The OVS-MP is a sturdy Mini Post specially designed for the OPTEX OVS-01GT and OVS-01CC Vehicle Presence Sensors.
- Up to three can be stacked in use.
- OPTEX OVS-02GT Catalog【PDF】
- OPTEX OVS-02GT Manual【PDF】
pH Sensor SE-pH-D Series
pH Sensor SE-pH-D Series[Parts No. 05330]
* The PVC pipe VP-20 and a standard fitting to be prepared by the user. Replacement electrode: SE-pH-EL[Parts No. 05333]
- Electrode replacement is quick and simple
- No tools required for the replacement of the electrode
- Electrode replacement is quick and simple
- No tools required for the replacement of the electrode
- Catalog
- Installation Manual
- Dimensions
* The PVC pipe VP-20 and a standard fitting to be prepared by the user. Replacement electrode: SE-pH-EL[Parts No. 05333]
ProSwing Elite T
Activation and Safety
- Monitoring Capability.
- No overhead safety sensor required.
- Large and Adjustable Detection Area.
- No Overhead Safety Sensor Required
The OPTEX ELITE T provides a full detection pattern that covers the entire swing path of the doors in their fully open and fully closed positions, eliminating the need for an overhead safety sensor. - Large and Adjustable Detection Area
The OPTEX ELITE T has a large detection area that can detect beyond the normal area around the moving part of the door. The sensor creates a layer of awareness around the door to ensure safety.
- Buildings
- Monitoring Capability.
- No overhead safety sensor required.
- Large and Adjustable Detection Area.
- Optex ProSwing Elite T Catalog
- Optex ProSwing Elite T Manual
R1002 REVERSED MOVEMENT
R1002 REVERSED MOVEMENT Reverse detection sensor, video-based, human tracking technology and direction-determining capability to avoid people walking the wrong direction. Accurate detection - An unique detection method [Vector Focal Method] grasps and
tracks a shape of human sterically. Reverse detection - Grasp all human movements and detect only backward movement. System corporation - Enable to be connected with an upper layer system by using
no-voltage output from the control box.
- Accurate detection with Vector Focal Method, can detect human shapes
- Detects reverse movement
- Non voltage output for upper layer connectivity
tracks a shape of human sterically.
no-voltage output from the control box.
- OPTEX R1002 Catalog【PDF】
Raytec MOBOTIX HUB Plug-in
Version 2.0.7.1
Release Date: March 2024 User Guide - MOBOTIX HUB Plug-in
- Sector: Security
- Compatability: All VARIO and VARIO2 IP Illuminators
- Seamless operation across all system devices
- Configurable instant lighting response to events
- Live control over lighting
- Free plug-in software
Release Date: March 2024 User Guide - MOBOTIX HUB Plug-in
Raytec Vario2 Extreme
VARIO2 Extreme is a range of long-range Infra-Red illuminators designed with enhanced durability and superior environmental protection, ensuring reliable performance in challenging conditions.
- Sector: Security
- Wavelength: 850nm
- Outdoors
- Datasheet - VARIO2 Extreme Infra-Red
- Installation Instructions - VARIO2 Extreme
- Bracket Guide - VARIO Universal Bracket (VUB)
- User Guide - VARIO2 Remote Control
Raytec Vario2 Extreme (White Light)
VARIO2 Extreme, long-range White-Light illuminators with increased durability and environmental protection.
- Sector: Security
- Wavelength: White-Light
- Outdoors
- Datasheet - VARIO2 Extreme White-Light
- Installation Instructions - VARIO2 Extreme
- Bracket Guide - VARIO Universal Bracket (VUB)
- User Guide - VARIO2 Remote Control
Raytec Vario2 IPPoE
VARIO2 IPPoE, medium and long-range Infra-Red illuminators with full network capability
- Sector: Security
- Wavelength: 850nm (940nm options available)
- Outdoors
- Datasheet - VARIO2 iP PoE - Infra-Red
- Installation Guide - VARIO2 IP PoE (Short Rev)
- Installation Guide - VARIO2 - IP PoE (Combined Guide)
- A&E Specifications - VARIO2 IP PoE Infra-Red
- Bracket Guide - VARIO Universal Bracket (VUB)
- Raytec HTTP API Command Summary
Raytec Vario2 IPPoE (White Light)
VARIO2 IPPoE, medium and long-range White-Light illuminators with full network capability
- Sector: Security
- Wavelength: White-Light.
- Outdoors
- Datasheet - VARIO 2 IP PoE White Light
- Installation Guide - VARIO2 IP PoE (Short Rev)
- Installation Guide - VARIO2 - IP PoE (Combined Guide)
- A&E Specifications - VARIO2 IP PoE White-Light
- Bracket Guide - VARIO Universal Bracket (VUB)
- Raytec HTTP API Command Summary
Raytec Vario2 IPPoE Hybrid
VARIO2 IPPoE, medium and long-range Hybrid illuminators
- Sector: Security
- Wavelength: Infra-Red 850nm & White-Light
- Outdoors
- Datasheet - VARIO2 IP PoE Hybrid
- Installation Guide - VARIO2 IP PoE Hybrid (Full Rev)
- Installation Guide - VARIO2 IP PoE Hybrid (Short Rev)
- A&E Specifications - VARIO2 IP PoE Hybrid
- Bracket Guide - VARIO Universal Bracket (VUB)
- Raytec HTTP API Command Summary
Raytec Vario2 Lighthouse Kit
VARIO2 illuminator and camera housing, low voltage.
- Sector: Security
- Wavelength: Infra-Red 850nm, White-Light or Hybrid
- Outdoors
- Datasheet - VARIO2 Lighthouse Kit (VLK)
- Installation Guide - VARIO2 VLK
- User Guide - VARIO2 Remote Control
Raytec Vario2 Lite
VARIO2 Lite, short, medium and long-range Infra-Red illuminators with simple on/off functionality
- Sector: Security
- Wavelength: 850nm (940nm options available)
- Outdoors
- Datasheet - VARIO2 Lite - Infra-Red
- Installation Guide - VARIO2 Lite
- Bracket Guide - VARIO Universal Bracket (VUB)
Raytec Vario2 Lite (White Light)
VARIO2 Lite, short, medium and long-range White-Light illuminators with simple on/off functionality
- Sector: Security
- Wavelength: White-Light
- Outdoors
- Datasheet - VARIO2 Lite - White Light
- Installation Guide - VARIO2 Lite
- Bracket Guide - VARIO Universal Bracket (VUB)
Raytec Vario2 Panoramic Ultra
VARIO2 Panoramic Ultra, Ultra-Wide Angle Infra-Red Illuminators
- Sector: Security
- Wavelength: 850nm (940nm options available)
- Outdoors
- Datasheet - VARIO2 - Infra-Red
- Bracket Guide - VARIO Universal Bracket (VUB)
- User Guide - VARIO2 Remote Control
Raytec Vario2 Panoramic Ultra (White Light)
VARIO2 Panoramic Ultra, Ultra-wide Angle-White-light illuminators
- Sector: Security
- Wavelength: White-Light
- Outdoors
- Datasheet - VARIO2 Panoramic Ultra White-Light
- User Guide - VARIO2 Remote Control
- Bracket Guide - VARIO Universal Bracket (VUB)
Raytec Vario2 PoE
VARIO2 PoE, short, medium and long-range Infra-Red illuminators with plug-and-play PoE input
- Sector: Security
- Wavelength: 850nm (940nm options available)
- Input: PoE
- Outdoors
- Datasheet - VARIO2 PoE Infra-Red
- Installation Guide - VARIO2 - PoE
- A&E Specifications - VARIO2 PoE Infra-Red
- Bracket Guide - VARIO Universal Bracket (VUB)
- User Guide - VARIO2 Remote Control
Raytec Vario2 PoE (White Light)
VARIO2 PoE, short, medium and long-range White-Light illuminators with plug-and-play PoE input
- Sector: Security
- Wavelength: White-Light
- Input: PoE
- Outdoors
- Datasheet - VARIO2 PoE White-Light
- Installation Guide - VARIO2 - PoE
- Bracket Guide - VARIO Universal Bracket (VUB)
- User Guide - VARIO2 Remote Control
- A&E Specifications - VARIO2 PoE White-Light
Raytec Vario2 Standard
VARIO2 low voltage, short, medium and long-range Infra-Red illuminators.
- Sector: Security
- Wavelength: Infra-Red 850nm
- Outdoors
- Datasheet - VARIO2 - Infra-Red
- Installation Guide - VARIO2
- A&E Specifications - VARIO2 Infra-Red
- Bracket Guide - VARIO Universal Bracket (VUB)
- User Guide - VARIO2 Remote Control
Raytec Vario2 Standard (White Light)
VARIO2 low voltage, short, medium and long range White-Light illuminators
- Sector: Security
- Wavelength: White-Light
- Outdoors
- Datasheet - VARIO2 - White Light
- Installation Guide - VARIO2
- User Guide - VARIO2 Remote Control
- Bracket Guide - VARIO Universal Bracket (VUB)
- A&E Specifications - VARIO2 White-Light
Raytec Vario2 Standard Hybrid Low Voltage
VARIO2 low voltage, short, medium and long-range Hybrid illuminators.
- Sector: Security
- Wavelength: Infra-Red 850nm & White-Light
- Outdoors
- Datasheet - VARIO2 Hybrid
- Installation Guide - VARIO2 - Hybrid
- User Guide - VARIO2 Remote Control
- Bracket Guide - VARIO Universal Bracket (VUB)
- A&E Specifications - VARIO2 Hybrid
SPARTAN Ex Floodlight
SPARTAN Flood, Hazardous Area Floodlight, Zone 2/22, 850nm.
- Sector: Hazardous
- Certification: ATEX, IECEx and UKEX
- Classification: Zone 2 & 22
- Outdoors
- Datasheet - SPARTAN Infra-Red Flood - Zone 2/22
- Installation Guide - SPARTAN Flood
- ABS Certificate
SPARTAN Ex Floodlight
SPARTAN Flood, Hazardous Area Floodlight, Zone 1/21, 850nm
- Sector: Hazardous
- Certification: ATEX, IECEx and UKEX
- Classification: Zone 1 & 21
- Outdoors
- Datasheet - SPARTAN Infra-Red Flood - Zone 1/21
- Installation Guide - SPARTAN Flood
- ABS Certificate
SS Sensor (High Range) TS-D Series
SS Sensor (High Range) TS-D SeriesTS-Mx-D [Parts No. 05338]
●Wiper blade × 2
●Cleaning brush × 1
●Detection window Cleaning paper × 2
●Manual × 1
- Capable of measuring up to 50,000 mg/L, the sensor supports a wide measurement range ideal for monitoring MLSS concentration in aeration basins.
- Built-in Wiper Cleaning System – Ensures the lenses remain clean for reliable and accurate measurements.
- Sapphire Glass Optical Windows – Made from scratch-resistant sapphire glass, allowing the window surface to be scrubbed for easy maintenance of the turbidity sensor.
- Compact Design – Allows for easy and flexible installation, even in limited spaces.
- Capable of measuring up to 50,000 mg/L, the sensor supports a wide measurement range ideal for monitoring MLSS concentration in aeration basins.
- Built-in Wiper Cleaning System – Ensures the lenses remain clean for reliable and accurate measurements.
- Sapphire Glass Optical Windows – Made from scratch-resistant sapphire glass, allowing the window surface to be scrubbed for easy maintenance of the turbidity sensor.
- Compact Design – Allows for easy and flexible installation, even in limited spaces.
- Catalog
- Installation Manual
- Dimensions
●Wiper blade × 2
●Cleaning brush × 1
●Detection window Cleaning paper × 2
●Manual × 1
SS Sensor (Middle Range) TCS Series
SS Sensor (Middle Range) TCS SeriesTCS-1000(E) [Sensor],[Parts No. 05057]
TA-2 [Parts No.05067]
It is a metal fitting for hanging the sensor.（CJ-1）
It is a chain for suspending the sensor.（TA-2）3) Maintenance kit: TC-MK [Parts No.05038]It is a replacement blade of the wiper cleaning device. Please exchange once a year as a guide.
Component
●Wiper blade × 2
●Cleaning brush × 1
●Detection window Cleaning paper × 2
●Manual × 1
- The built-in wiper system effectively keeps the lenses clean.
- The optical windows are made of scratch-resistant sapphire glass, which is easy to clean.
- Its compact design allows for easy integration into any installation site.
- This sensor is suitable for continuous monitoring of suspended solids. Its analog output (4–20 mA) ensures compatibility with a wide range of equipment and systems.
- The sensor offers high durability, featuring a robust casing made from stainless steel. It uses 18-15-2.5 Cr-Ni-Mo low-carbon stainless steel, ensuring excellent resistance to corrosion and long-term reliability.
- The built-in wiper system effectively keeps the lenses clean.
- The optical windows are made of scratch-resistant sapphire glass, which is easy to clean.
- Its compact design allows for easy integration into any installation site.
- This sensor is suitable for continuous monitoring of suspended solids. Its analog output (4–20 mA) ensures compatibility with a wide range of equipment and systems.
- The sensor offers high durability, featuring a robust casing made from stainless steel. It uses 18-15-2.5 Cr-Ni-Mo low-carbon stainless steel, ensuring excellent resistance to corrosion and long-term reliability.
- Catalog
- Installation Manual
- Dimensions
TA-2 [Parts No.05067]
It is a metal fitting for hanging the sensor.（CJ-1）
It is a chain for suspending the sensor.（TA-2）3) Maintenance kit: TC-MK [Parts No.05038]It is a replacement blade of the wiper cleaning device. Please exchange once a year as a guide.
Component
●Wiper blade × 2
●Cleaning brush × 1
●Detection window Cleaning paper × 2
●Manual × 1
SS Sensor (Middle Range) TS-D Series
SS Sensor (Middle Range) TS-D SeriesTS-1000-D [Parts No. 05325]TS-1000SP-D [Parts No. 05326],[for sea water]
TA-2 [Parts No.05067]
It is a metal fitting for hanging the sensor.（CJ-1）
It is a chain for suspending the sensor.（TA-2）3) Maintenance kit: TC-MK [Parts No.05038]It is a replacement blade of the wiper cleaning device. Please exchange once a year as a guide.
Component
●Wiper blade × 2
●Cleaning brush × 1
●Detection window Cleaning paper × 2
●Manual × 1
- The built-in wiper system effectively keeps the lenses clean.
- The optical windows are made of scratch-resistant sapphire glass, which is easy to clean.
- Its compact design allows for easy integration into any installation site.
- Built-in wiping cleaning system certainly keeps lenses clean. Check and clean the window surface once every month.
- The optical windows are made of scratch-resistant sapphire glass, allowing for easy cleaning and scrubbing without damage.
- The compact design allows for flexible installation in virtually any location.
- Catalog
- Installation Manual
- Dimensions
TA-2 [Parts No.05067]
It is a metal fitting for hanging the sensor.（CJ-1）
It is a chain for suspending the sensor.（TA-2）3) Maintenance kit: TC-MK [Parts No.05038]It is a replacement blade of the wiper cleaning device. Please exchange once a year as a guide.
Component
●Wiper blade × 2
●Cleaning brush × 1
●Detection window Cleaning paper × 2
●Manual × 1
Turbidity Analyser (Ultra Low Range) TC Series
Turbidity Analyser (Ultra Low Range) TC SeriesProduct Name - TC-Mi [Display],[Parts No. 05297]Features
Used to control the measured flow rate for turbidity measurement.
- Easy installation
The compact design containing a deforming enables you to install easily. - Maintenance cost reduction
A LED light source eliminates the need for replacement.
No need to use or replace dehumidifier. - High measurement accuracy
The condensation prevention function maintains a stable measurement.
Built-in deforming tank to remove air bubbles. - Water and dust resistance
High waterproof and dustproof structure to various installation sites.
- Easy installation
The compact design containing a deforming enables you to install easily. - Maintenance cost reduction
A LED light source eliminates the need for replacement.
No need to use or replace dehumidifier. - High measurement accuracy
The condensation prevention function maintains a stable measurement.
Built-in deforming tank to remove air bubbles. - Water and dust resistance
High waterproof and dustproof structure to various installation sites.
- Catalog
- Installation Manual
- Dimensions
Used to control the measured flow rate for turbidity measurement.
Turbidity Sensor (Middle Range) TSC-D Series
Turbidity Sensor (Middle Range) TSC-D SeriesTSC-10-D,[Parts No. 05337]
●Wiper blade × 2
●Cleaning brush × 1
●Detection window Cleaning paper × 2
●Manual × 1
- 90° Scattered Light Method - The TSC-10-D turbidity sensor uses the 90° scattered light method, a globally recognised standard for turbidity measurement.
- Built-in Wiper Cleaning System – Ensures the lenses remain clean for reliable and accurate measurements.
- Sapphire Glass Optical Windows – Made from scratch-resistant sapphire glass, allowing the window surface to be scrubbed for easy maintenance of the turbidity sensor.
- Compact Design – Allows for easy and flexible installation, even in limited spaces.
- 90° Scattered Light Method - The TSC-10-D turbidity sensor uses the 90° scattered light method, a globally recognised standard for turbidity measurement.
- Built-in Wiper Cleaning System – Ensures the lenses remain clean for reliable and accurate measurements.
- Sapphire Glass Optical Windows – Made from scratch-resistant sapphire glass, allowing the window surface to be scrubbed for easy maintenance of the turbidity sensor.
- Compact Design – Allows for easy and flexible installation, even in limited spaces.
- Catalog
- Installation Manual
- Dimensions
●Wiper blade × 2
●Cleaning brush × 1
●Detection window Cleaning paper × 2
●Manual × 1
Turbidity Sensor TC Series
Turbidity Sensor TC SeriesProduct NameTC-100 [Sensor],[Parts No. 05035] TC-500 [Sensor],[Parts No. 05036] TC-3000 [Sensor],[Parts No. 05049] Feature
TA-2 [Parts No.05067]
It is a metal fitting for hanging the sensor.（CJ-1）
It is a chain for suspending the sensor.（TA-2）3) Maintenance kit: TC-MK [Parts No.05038]It is a replacement blade of the wiper cleaning device. Please exchange once a year as a guide.
Component
●Wiper blade × 2
●Cleaning brush × 1
●Detection window Cleaning paper × 2
●Manual × 1
- The built-in wiper system effectively keeps the lenses clean.
- The optical windows are made of scratch-resistant sapphire glass, which is easy to clean.
- Its compact design allows for easy integration into any installation site.
- Continuous measurement is possible with a single sensor. The built-in analog output (4 to 20 mA) enables data transmission to various devices, making it adaptable to a wide range of applications.
- Built-in wiping cleaning system certainly keeps lenses clean. Check and clean the window surface once every month.
- The optical windows are made of scratch-resistant sapphire glass, allowing for easy cleaning and scrubbing without damage.
- The compact design allows for flexible installation in virtually any location.
- Continuous measurement is possible with a single sensor. The built-in analog output (4 to 20 mA) enables data transmission to various devices, making it adaptable to a wide range of applications.
- Catalog
- Installation Manual
- Dimensions
TA-2 [Parts No.05067]
It is a metal fitting for hanging the sensor.（CJ-1）
It is a chain for suspending the sensor.（TA-2）3) Maintenance kit: TC-MK [Parts No.05038]It is a replacement blade of the wiper cleaning device. Please exchange once a year as a guide.
Component
●Wiper blade × 2
●Cleaning brush × 1
●Detection window Cleaning paper × 2
●Manual × 1
Turbidity Sensor TC-D Series
Turbidity Sensor TC-D Series
TC-3000-D [Parts No. 05327]
TC-3000SP-D [Parts No. 05328] [for sea water]
TA-2 [Parts No.05067]
It is a metal fitting for hanging the sensor.（CJ-1）
It is a chain for suspending the sensor.（TA-2）3) Maintenance kit: TC-MK [Parts No.05038]It is a replacement blade of the wiper cleaning device. Please exchange once a year as a guide.
Component
●Wiper blade × 2
●Cleaning brush × 1
●Detection window Cleaning paper × 2
●Manual × 1
- The built-in wiper system effectively keeps the lenses clean.
- The optical windows are made of scratch-resistant sapphire glass, which is easy to clean.
- Its compact design allows for easy integration into any installation site.
- Built-in wiping cleaning system certainly keeps lenses clean. Check and clean the window surface once every month.
- The optical windows are made of scratch-resistant sapphire glass, allowing for easy cleaning and scrubbing without damage.
- The compact design allows for flexible installation in virtually any location.
- Catalog
- Installation Manual
- Dimensions
TA-2 [Parts No.05067]
It is a metal fitting for hanging the sensor.（CJ-1）
It is a chain for suspending the sensor.（TA-2）3) Maintenance kit: TC-MK [Parts No.05038]It is a replacement blade of the wiper cleaning device. Please exchange once a year as a guide.
Component
●Wiper blade × 2
●Cleaning brush × 1
●Detection window Cleaning paper × 2
●Manual × 1
Universal Transmitter SC Series
Universal Transmitter SC-U1(E)[Part No. 05324]
You can add 2 channels of sensor, 2 channels of 4-20 mA output, and 4 channels of relay output when attaching this to SC-U1(E).
- User-friendly and easy to understand operation.
- 2 sensors can be connected as default.
- A maximum of 4 sensors can be connected via the expansion board.
- Output available as 4-20 mA & RS485.
- 4 number of relays are available and a maximum of 8 can be extended.
- Catalog
- Installation Manual
- Operation Manual
- Dimensions
You can add 2 channels of sensor, 2 channels of 4-20 mA output, and 4 channels of relay output when attaching this to SC-U1(E).
VARIO2 Avigilon Plug-in
Version 3.1
Release: Feb 2024 User Guide – Avigilon Integration
- Sector: Security
- Compatability: All VARIO and VARIO2 IP PoE Illuminators
- Seamless operation with all Avigilon system devices
- Instant lighting response configuration for event-driven activation
- Live control over lighting through the interface
- Free plug-in software for easy setup
Release: Feb 2024 User Guide – Avigilon Integration
VARIO2 Axis ACAP Plug-in
Versions 2.3.0, 2.4.0 and 2.5.0
- Sector: Security
- Compatability: All VARIO and VARIO2 IP Illuminators
- Configuration through a user-friendly interface embedded within the camera.
- No need for a VMS, server, or additional wiring, which reduces installation complexity and costs.
- Seamless communication between the camera and illuminators for efficient and timely lighting control.
- Enables direct communication between Axis cameras and VARIO IP illuminators.
- Allows instant lighting responses triggered by camera events.
- Features a user-friendly interface embedded within the camera for easy configuration.
- Provides live control over lighting without requiring a VMS or server.
- Available as free plug-in software.
- Version 2.3.0: For camera firmware below v10.7
- Version 2.4.0: For camera firmware v10.7 and above
- Version 2.5.0: For camera firmware v11.11 and above
- User Guide - Raytec Axis ACAP Integration - Jan 2025
- Release Notes - Raytec AXIS ACAP Integration - Jan 2025
Vario2 Bracket Solutions
Specialist bracket solutions for Raytec illuminators
- Sector: Security
Vario2 Daytime Set-up Tool
Daytime set-up tool for VARIO2 illuminators
- Sector: Security
VARIO2 Discovery & Management Tool Security
Version 2.1.0.0
Release: March 2025
- Sector: Security
- Compatability: All VARIO and VARIO2 IP Illuminators
Release: March 2025
- Release Notes - Raytec DiscoMan - March 2025
- User Guide - Raytec DiscoMan - March 2025
- Raytec HTTPS Setup Guide - March 2025
VARIO2 Genetec Plug-in
Version 3.2.1
Release : September 2024
- Sector: Security
- Compatability: All VARIO and VARIO2 IP Illuminators
- Seamless operation with all Security Center devices
- Configurable instant lighting response to events
- Live control over lighting
- Simple plug-in installation software
Release : September 2024
- Raytec Genetec Plug-in User Guide v3.2.1
- Raytec Genetec Plugin Release Notes
VARIO2 HTTP Command Creator
Version 2.0.0.2
Release: June 2023
- Sector: Security
- Quick creation of HTTP commands tailored to your needs.
- Verification of command functionality before deployment in VMS environments.
- Comprehensive overview of available control and status commands for the IPPoE illuminator range.
Release: June 2023
- User Guide - Raytec HTTP Command Creator
- Release Notes - Raytec HTTP Command Creator
- Raytec HTTPS Setup Guide
Vario2 Interchangeable Lenses
Interchangeable lenses for VARIO2 illuminators
Enquire
- Sector: Security
Enquire
VARIO2 IP PoE Firmware
Versions 2.7.3 and 6.2.2
- Sector: Security
- Compatability: VARIO2 IP PoE Illuminators Only.
- Installation Guide - VARIO2 IP PoE (Short Rev)
- Installation Guide - VARIO2 IP PoE (Full Rev)
- Raytec HTTPS Setup Guide
- Release Notes - Raytec VARIO2.5 Firmware
VARIO2 IP PoE Hybrid Firmware
Version 3.7.2 and 7.2.2
- Sector: Security
- Compatability: VARIO2 IP PoE Hybrid Illuminators Only
- Installation Guide - VARIO2 IP PoE Hybrid (Short Rev)
- Installation Guide - VARIO2 IP PoE Hybrid (Full Rev)
- Raytec HTTPS Setup Guide
- Release Notes - Raytec VARIO2.5 Hybrid Firmware
VARIO2 Milestone Plug-in
Version 3.1
Release: October 2023 User Guide - Milestone Plug-in
- Sector: Security
- Compatability: All VARIO and VARIO2 IP Illuminators
- Seamless operation with all Milestone system devices
- Configurable instant lighting response to events
- Live lighting control via the user interface
- Free plug-in software for straightforward setup
Release: October 2023 User Guide - Milestone Plug-in
Vario2 PSU
VARIO2 Power Supply Unit
- Sector: Security
- Wavelength: Infra-Red 850nm & White-Light
- Datasheet - VARIO PSU
- Installation guide - VARIO2 - PSU
Vario2 Remote Control
Remote control for VARIO2 illuminators
- Sector: Security
VARIO2 Siemens Siveillance Video Plug-in
Version 2.0.7.1
Released: October 2023 User Guide - Siveillance Plug-in
- Sector: Security
- Compatability: All VARIO and VARIO2 IP Illuminators
- Seamless operation with all Siveillance system devices
- Configurable instant lighting response to camera events
- Live control over lighting
- Free plug-in software for simple setup
Released: October 2023 User Guide - Siveillance Plug-in
Vario2 Universal Bracket
VARIO Universal Bracket
Enquire
Product Details
Downloads
The VARIO Universal Bracket (VUB) is a comprehensive family of brackets and mounting plates designed for flexible and custom installation of all Raytec VARIO illuminators and PSUs. Offering a “one bracket fits all” solution, the VUB system simplifies mounting and adapts to various installation challenges. It is available in VUB-WALL and VUB-POLE mount versions, with multiple plates to support mounting of several units. The VUB accommodates different combinations of illuminators and PSUs, provides multiple fixing points, and allows independent pan and tilt adjustments for precise lighting alignment.
Bracket Guide - VARIO Universal Bracket (VUB)
VC-1020
Accurate and Reliable people counting sensor, vital for Retail Facilities.
- Provides automatic traffic counts of people entering stores and facilities
- Accurately tracks complicated movements
- Sensor processes counts, stores, and transfers data
- Simple Web-based setup interface
- Video Streaming
- Data Delivery via FTP/FTPS
- POE Powered
- Provides automatic traffic counts of people entering stores and facilities (IN/OUT Bi-Directional & Multiple Counts)
- Accurately tracks complicated movements (people standing still, turning back, crowds)
- Sensor processes counts, stores, and transfers data
- Simple Web-based setup interface
- Video Streaming
- Data Delivery via FTP/FTPS
- POE Powered
- Building
- Shop
- Provides automatic traffic counts of people entering stores and facilities
- Accurately tracks complicated movements
- Sensor processes counts, stores, and transfers data
- Simple Web-based setup interface
- Video Streaming
- Data Delivery via FTP/FTPS
- POE Powered
- OPTEX VC-1020 Surface Mount Spec Sheet
- OPTEX VC-1020 Surface Mount Installation Manual
X-ZONE
COMBINATION SENSOR
- Look back (BLUE ZONE)
- Inner cover design
- I.N.C. logic for stable operation
- Uni-directional function
- Look back (BLUE ZONE) – When the approach area detects a person or object, the sensor will activate the door and turn on the “Lookback(BLUE ZONE)” which detects through the threshold. As long as someone is in the detection area, the sensor will keep the door in the open position. Once the area is cleared, the “Look back(BLUE ZONE)” will ignore the door panels and allow the door to safely close.
- Inner cover design – The OAM-DUAL(X-ZONE) is designed with an inner cover that completely protects all sensitive PC boards and optical systems. This reduces the chance of damage during installation and dramatically increases the longevity of the sensor..
- I.N.C. logic for stable operation – The OAM-DUAL(X-ZONE) remains stable in all environments thanks to our innovative I.N.C. Logic (Intelligent Noise Cancelling). This feature allows the OAM-DUAL(X-ZONE) to reliably detect people near the door while ignoring interference from rain, snow, vibration, insects and ambient light sources.
- Uni-directional function – The OAM-DUAL(X-ZONE) can be adjusted to ignore traffic moving away from the sensor and reset more quickly. This will allow the door to close more quickly which reduces airflow between environmentally-controlled areas and the outdoors. This feature will save your customer money over the life of the sensor. Reduce power consumption and protect the environment with the OAM-DUAL(X-ZONE) from OPTEX.
- Building
- Look back (BLUE ZONE)
- Inner cover design
- I.N.C. logic for stable operation
- Uni-directional function
- Installation tool for area adjustment
